MCP OAuth (connector authorization)

First-time workspace setup

Operators connecting Claude.ai or ChatGPT MCP connectors do not call these routes manually — the connector platform runs the flow. Administrators must enable at least one tool domain on Account Settings → AI / MCP before authorization succeeds. Pair operator context with Landlord MCP — Connector OAuth and Management session authentication (browser JWT contrast). Workflow pairing: Setup sequence after go-live (hub: API Reference — Setup sequence after go-live).

Finding your way in this guide

Start with Who uses these routes, then Discovery and the Authorization code flow sequence. Token shapes: Token response. Scope and policy: Scopes and tool permissions and Redirect URI policy. Revocation: Revocation and re-authorization. Operator UI: Account Settings → AI / MCP. Full pairing matrix: MCP OAuth section cross-reference · API Reference — API guide cross-reference.

Vivin's Core API hosts an OAuth 2.1 Authorization Server for hosted MCP connectors (for example Claude.ai and ChatGPT). Connectors discover endpoints, register dynamically, run PKCE authorization code + refresh-token grants, and receive a management JWT the Landlord MCP server already accepts at /mcp.

This page documents the HTTP contract on the API host. For operator setup, consent behaviour, and when to use API keys instead, see Landlord MCP — Connector OAuth.

Not partner integration auth

These routes are not the partner Authentication Bearer keys used on /{platform}-integration prefixes. They are also not POST /auth/login — see Management session authentication.

Who uses these routes

Caller	Typical use
Claude.ai / ChatGPT MCP connectors	Full OAuth flow — discovery → register → authorize → token
Native/desktop MCP clients	Same flow with loopback `redirect_uri` values (`http://localhost` / `http://127.0.0.1`, RFC 8252)
IDE configs (Cursor, Claude Desktop)	Usually paste an API key Bearer token instead — no OAuth
Custom scripts	Prefer Management session login or Landlord MCP with an API key

All routes are public (no Authorization header on discovery/register/authorize/token) but rate-limited per client IP. The consenting landlord is identified from a Vivin refresh cookie or email/password on the consent form — never from unauthenticated client-supplied account ids.

Discovery

RFC 8414 metadata is exposed at either well-known path on the API host:

GET /.well-known/oauth-authorization-server HTTP/1.1
Host: api.vivin.app

GET /.well-known/openid-configuration HTTP/1.1
Host: api.vivin.app

Both return the same JSON (CORS *, cache max-age=3600). Example shape:

{
  "issuer": "https://api.vivin.app",
  "authorization_endpoint": "https://api.vivin.app/oauth/authorize",
  "token_endpoint": "https://api.vivin.app/oauth/token",
  "registration_endpoint": "https://api.vivin.app/oauth/register",
  "response_types_supported": ["code"],
  "grant_types_supported": ["authorization_code", "refresh_token"],
  "code_challenge_methods_supported": ["S256"],
  "token_endpoint_auth_methods_supported": ["none", "client_secret_post"],
  "scopes_supported": [
    "bookings",
    "listings",
    "properties",
    "tenants",
    "maintenance",
    "payments",
    "bills",
    "owners",
    "analytics"
  ]
}

issuer and endpoint URLs follow the request host (including staging hosts such as dapi.vivin.app).

Dynamic client registration

RFC 7591 registration for trusted connector callbacks:

POST /oauth/register HTTP/1.1
Host: api.vivin.app
Content-Type: application/json

{
  "client_name": "Claude MCP",
  "redirect_uris": ["https://claude.ai/api/mcp/auth_callback"],
  "grant_types": ["authorization_code", "refresh_token"],
  "token_endpoint_auth_method": "none"
}

Response (201) — registered client metadata (optional client_secret when auth method requires it):

{
  "client_id": "…",
  "client_id_issued_at": 1710000000,
  "redirect_uris": ["https://claude.ai/api/mcp/auth_callback"],
  "grant_types": ["authorization_code", "refresh_token"],
  "token_endpoint_auth_method": "none",
  "client_name": "Claude MCP"
}

Registration rejects redirect URIs outside the trusted policy.

Authorization code flow

sequenceDiagram
  participant Connector as MCP connector
  participant API as Core API (OAuth)
  participant Landlord as Landlord browser
  participant MCP as Landlord MCP /mcp
  Connector->>API: GET /.well-known/oauth-authorization-server
  Connector->>API: POST /oauth/register
  Connector->>Landlord: Redirect GET /oauth/authorize (PKCE challenge)
  Landlord->>API: Consent (session cookie or login form)
  API-->>Connector: Redirect with ?code=
  Connector->>API: POST /oauth/token (code + code_verifier)
  API-->>Connector: access_token (JWT) + refresh_token
  Connector->>MCP: Bearer JWT → Mcp-Session-Id
  MCP->>API: Tool calls with management JWT

Authorize

GET /oauth/authorize?response_type=code
  &client_id=<client_id>
  &redirect_uri=<registered_uri>
  &code_challenge=<S256_challenge>
  &code_challenge_method=S256
  &state=<opaque>
  &scope=bookings%20listings HTTP/1.1
Host: api.vivin.app

Parameter	Requirement
`response_type`	Must be `code`
`client_id`	Registered client
`redirect_uri`	Exact match to a registered URI (loopback: port-agnostic per RFC 8252)
`code_challenge` / `code_challenge_method`	PKCE mandatory — only `S256` accepted (`plain` rejected)
`scope`	Optional space-separated subset of supported scopes
`state`	Recommended opaque value echoed on redirect

Behaviour

If the landlord already has a valid Vivin refresh cookie, the HTML consent page shows their email and the tool domains they will grant.
Otherwise the consent form collects email/password, then shows the same allow/deny UI.
Allow redirects to redirect_uri with ?code=…&state=… (authorization code TTL 120 seconds, single-use).
Deny redirects with error=access_denied.
Invalid client_id or redirect_uri returns an inline HTML error page (no redirect — avoids open-redirect leaks).
Zero enabled MCP tool domains for the account returns access_denied — enable domains on AI / MCP → Tool permissions first.

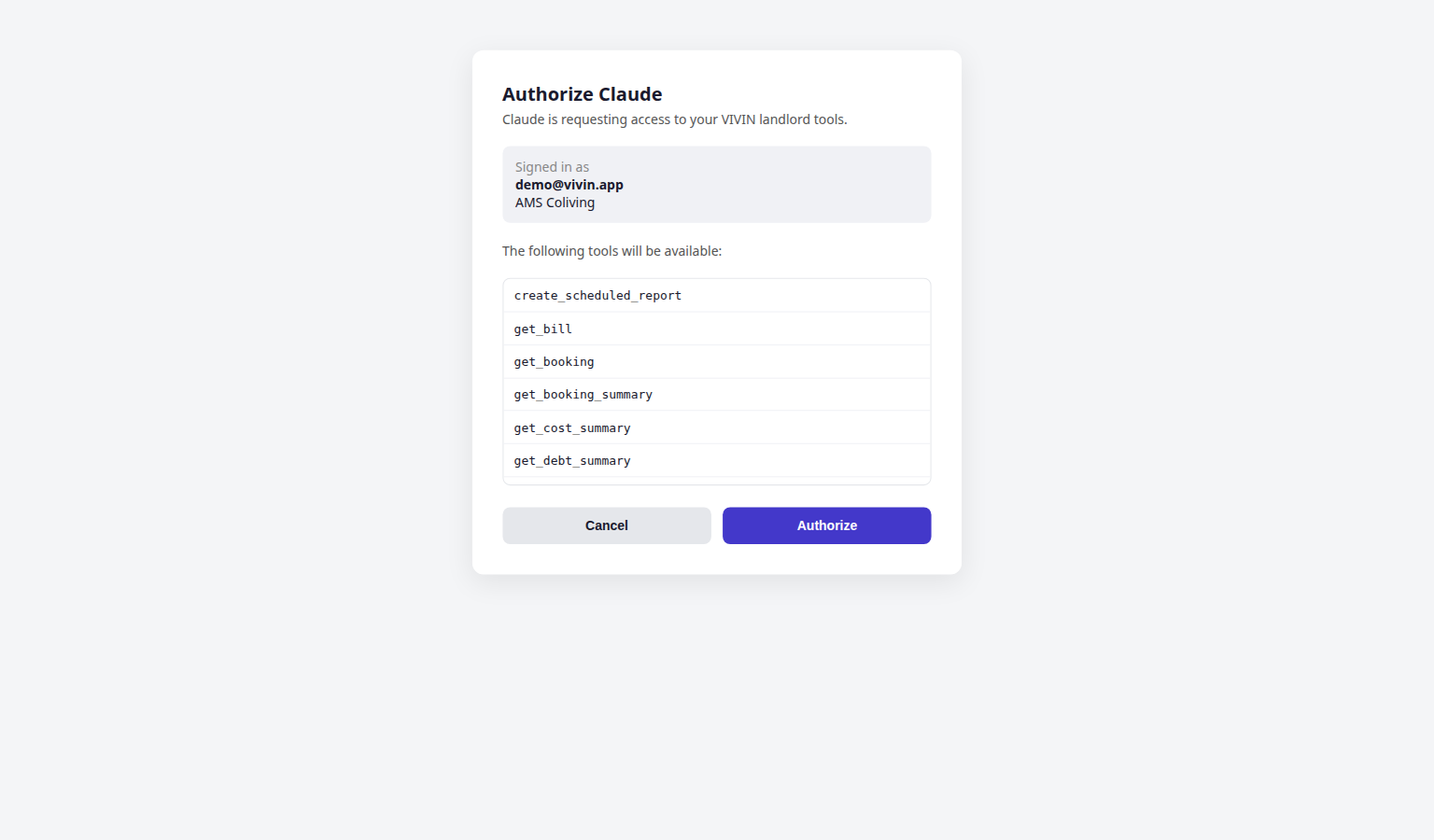

OAuth consent — signed-in landlord with allowed MCP tool list (Authorize / Cancel)

Token

POST /oauth/token accepts application/x-www-form-urlencoded or JSON bodies.

Authorization code grant

POST /oauth/token HTTP/1.1
Host: api.vivin.app
Content-Type: application/x-www-form-urlencoded

grant_type=authorization_code
&code=<authorization_code>
&redirect_uri=<same_as_authorize>
&client_id=<client_id>
&code_verifier=<pkce_verifier>

Refresh token grant

POST /oauth/token HTTP/1.1
Host: api.vivin.app
Content-Type: application/x-www-form-urlencoded

grant_type=refresh_token
&refresh_token=<refresh_token>
&client_id=<client_id>

Refresh tokens live 60 days, rotate on each successful refresh, and bind to the same client + landlord.

Token response

Response (200) — OAuth token envelope (no-store):

{
  "access_token": "<management JWT>",
  "token_type": "Bearer",
  "expires_in": 3600,
  "refresh_token": "<opaque refresh token>",
  "scope": "bookings listings properties"
}

Field	Meaning
`access_token`	Same management JWT shape as `POST /auth/login` — use as `Authorization: Bearer` on Landlord MCP `/mcp` and Core API routes the user's role permits. JWT includes `tokenSource: "mcp"` for audit.
`expires_in`	Seconds until JWT expiry (from JWT `exp` claim)
`refresh_token`	Opaque refresh handle — 60-day lifetime, rotates on each refresh grant
`scope`	Space-separated tool domains actually granted (intersection of account tool permissions, user role, and consent)

After the initial Bearer exchange, Landlord MCP clients should send Mcp-Session-Id on follow-up streamable HTTP requests — see Landlord MCP — How it connects.

Scopes and tool permissions

Advertised scopes map one-to-one to Landlord MCP tool domains:

OAuth scope	Landlord MCP domain
`bookings`	Bookings tools
`listings`	Listings tools
`properties`	Properties tools
`tenants`	Tenants tools
`maintenance`	Maintenance / tickets tools
`payments`	Payments tools
`bills`	Bills tools
`owners`	Owners tools
`analytics`	Analytics / KPI tools

Issued scope is the intersection of:

Account Settings → AI / MCP → Tool permissions (account-wide Off / Read-only / Edit),
The consenting user's role permissions and per-user AI access overrides, and
The scope parameter on the authorize request (when present).

A domain set to Off at account level is omitted from the token even if the connector requests it.

Redirect URI policy

At registration and on every authorize / token call, redirect URIs must match the trust policy:

Class	Examples
Anthropic Claude.ai	`https://claude.ai/api/mcp/auth_callback`
OpenAI ChatGPT	`https://chatgpt.com/connector_platform_oauth_redirect`, or any `https://chatgpt.com/connector/oauth/…` path prefix
Loopback (RFC 8252)	`http://localhost:/`, `http://127.0.0.1:/` — any port and path

Arbitrary https:// origins, non-HTTPS remotes (except loopback), and data: / javascript: schemes are rejected — this blocks open-redirect token exfiltration.

Revocation and re-authorization

There is no public revoke endpoint for operators today. Access ends when:

The refresh token expires (60 days without a successful refresh), or
AI access is disabled for the user on Per-user permissions, or
Every MCP tool domain is set to Off on refresh — the next grant_type=refresh_token call returns access_denied and the connector must send the landlord through /oauth/authorize again.

Rotate compromised connector sessions by disabling AI access, then re-authorizing after policy is restored.

Error responses

OAuth errors use RFC 6749-style JSON on the token endpoint:

{
  "error": "invalid_grant",
  "error_description": "Authorization code expired or already used"
}

Common error values: invalid_client, invalid_grant, invalid_request, unsupported_grant_type, access_denied. Authorize-step protocol errors redirect to the registered redirect_uri with error and error_description query parameters when the redirect URI is already trusted.

For management JWT expiry on MCP tool calls (not OAuth refresh), see Error handling.

MCP OAuth section cross-reference

Topic	Pair with
Discovery	Landlord MCP — Connector OAuth (operator narrative)
Authorization code flow	AI / MCP — Connector OAuth (settings UI)
Token response	Management session (JWT login contrast), Landlord MCP — How it connects (`Mcp-Session-Id`)
Scopes and tool permissions	AI / MCP — Tool permissions, Users and roles
Revocation and re-authorization	AI / MCP — Per-user permissions

Setup sequence after go-live

Enable at least one domain on AI / MCP → Tool permissions before connector authorization
Pair connector setup with Automation & AI — External AI clients (MCP)
Poll AI usage (landlord_chat) after teams adopt Claude/ChatGPT connectors

Companion API guides

Management session authentication — Browser POST /auth/login JWT (distinct from OAuth-issued tokens)
AI usage — Internal LLM cost ledger on the same management JWT
Error handling — 401 / 403 on Core API and MCP tool calls
Landlord MCP — Tool catalogue and /mcp session headers
